Computer Connections 4
Port Selection Pushbuttons, Hotkeys, IR Remote Control, On-Screen Display(OSD), RS-232 Commands
Connectors
Console Ports 2 x USB Type A Female
2 x HDMI Female (Black)
2 x 3.5mm Audio Jack Female (Green; 1 x front panel,1 x rear panel)
2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)
2 x RJ-45
KVM (Computer) Ports 4 x USB Type B Female (White)
4 x HDMI Female (Black)
4 x 3.5mm Audio Jack Female (Green)
4 x 3.5mm Audio Jack Female (Pink)
Power 1 x IEC320 Jack
USB Hub 2 x USB 2.0 Type A Female (1 x front panel; 1 x rear panel)
Switches
Selected 11 x Pushbuttons
LEDs
KVM 4 (Orange)
Audio 4 (Green)
USB 4 (Green)
Emulation
Keyboard / Mouse USB
Video 4096 x 2160 @ 30 Hz
Scan Interval 5, 10, 15, 30, 60, 90 seconds (default: 5 seconds)
Maximum Input Power Rating 100-240 VAC; 50/60 Hz; 1A
Power Consumption AC110V:16.0W:101BTU
AC220V:14.8W:95BTU
Environmental
Operating Temperature 0-50°C
Storage Temperature -20-60°C
Humidity 0-95% RH, Non-condensing
Physical Properties
Housing Metal
Weight 2.46 kg ( 5.42 lb )
Dimensions (L x W x H) 43.72 x 16.40 x 4.40 cm
(17.21 x 6.46 x 1.73 in.)
Package Contents

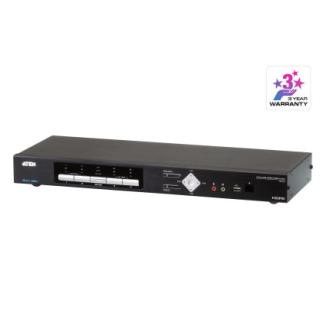

1x CM1284 4-Port USB HDMI Multi-View KVMPTM Switch
4x USB HDMI Cables
1x Power Cord
1x IR Remote Control
1x Rack Mount Kit
1x User Instructions
